Multifunctional automatic channel letter bending machine Good performance double head
Machine description
QA-BB300 automatic channel letter bending machine is a multifunctional bending machine for metal coils, the machine equip with double bending head, one is for aluminum only, one is for steel.
The cutter knife is also separated, imported plane cutter for steel iron , round milling cutter for notching aluminum. The aluminum can have special edge, see attached photo.
When change different material, just need to change the bending head and also choose the suitable software for different material.
Equip with rolling feeding material, the built-in closed-loop control system, to realize the closed-loop control of the contour length, make sure to send the feed precision up to 0.1mm
The depth of groove is adjustable, relationship of setting time, convenient regulation processing of different thickness of the material, tool setting more convenient and fast
Linkage type shoot bending mode, the processed products of forming high degree, ultrafast processing.
Applications
Materials: Aluminum, stainless steel, iron, galvanized sheetect. See below photo
Industries: advertising industry, such as logos, signs, other advertising productions.
Features
1. Automatic feeding, open angle 45-135 degrees, automatic bending arc(curved mini diameter 15mm)
2. Fast speed, finish at one time, no need a separate production of acrylic blocks.
3. Controlled by step motor, finish one 30cm letter “S” only takes 44 seconds.
4. Low energy consumption, the total power is 3000W, using power is less than 1500W.
5. Can read DXF,AI, plt vector file format, the same as laser cutting files. Much more convenient to work together with laser machines to finish the whole work of a channel letter.
6. Special need can be customized.
7. It adopts two servo motors that makes feeding and bending speed faster
8. Develop a self-make new software, match with machine working well and make easier process higher precision.
9. The original double-bent knife parallel bending technology, bending angle reached 130 °.
10. High precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4 °.
Technical Parameters
Automatic channel letter bending machine
| Model: | QA-DB300 automatic channel letter bending machine |
| Type | PC computer Control |
| Bending Material: | Aluminum Stainless steel Iron Galvanized sheet |
| Max. Processed Thickness: | 0.3-1.2 mm |
| Max. Processed Width: | <128 mm |
| Slot angle | 45-135 degrees |
| Min. Bending radius | R10mm |
| Bending distance from start angle | 3mm |
| Power consumption | 2000W |
| Voltage: | 220V |
| Weight: | 500KG |
| File format | PLT |
| Feed speed: | 5~20 m/ min |
| Precision | 0.05 mm |
| Service | Engineer available to service overseas |
| Dimension | 1850x880x1300mm |
Special tools

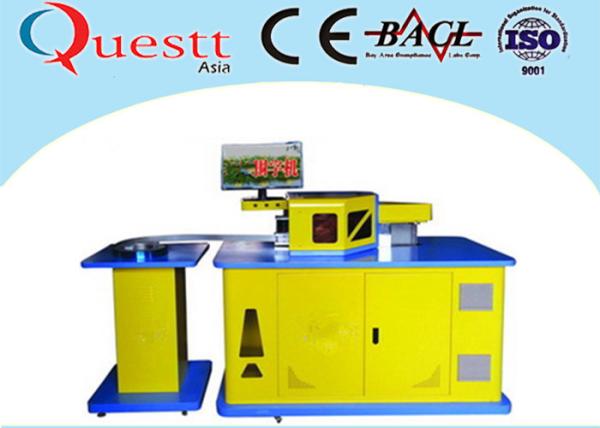

Machine overview
