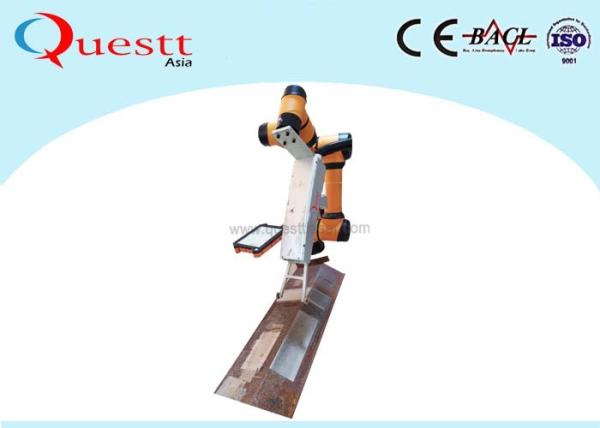

Robotic Laser Rust Removal Machine for Automation Cleaning Painting with 6 axis Robot 100-1000W
Description:
Robotic cleaning laser is our newest design of laser cleaning machine system.
It is a full automation cleaning system, which equipped with a 6 axis robot and 200W fiber laser source. The cleaning is efficient and got better result than manually cleaning.
The fiber calbe length can be max 50 meters.The laser derusting machine can be customized according to customer needs.
Laser cleaning Machine is a new generation of surface cleaning of High-tech products. Easy to install, manipulate and automate. Simple operation, access to power, open equipment, you can carry out chemical reagents
Equipped with water cooling System, add a dust connector to keep the workroom clean.The laser cleaning head can be fix or designed as a hand held one.
Characteristic:
1. Laser cleaning has no grinding, non-contact, no thermal effect
2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide;
3. No damage to substrate of the products;
4. High cleaning precision, strong controllability;
5. Can be used for a long time, low operating costs;
6. The device can realize automatic operation and simple operation;
7. Environmentally friendly, no supplies, no two pollution
8. It is suitable for various materials, etc.
Specifications:
| Model | QA-LC60 | QA-LC100 | QA-LC200 | QA-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 60W | 100W | 200W | 500W |
| Fiber cable L | 3 M | 3 M | 5 M | 20M |
| Pulse Energy | 1.5 mJ | 1.5 mJ | 2 mJ | 50 mJ |
| Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
| Frequency | 1-2000KHz | 1-2000KHz | 1-2000KHz | 10-50KHz |
| Clean speed | ≤5 M²/Hour | ≤10 M²/Hour | ≤15 M²/Hour | ≤50 M²/Hour |
| Scann speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air cooling | Water cooling |
| Dimension | 650*250*560 | 900*450*980 | 900*450*980 | 1100*600*1100 |
| Weight | 30Kg | 40Kg | 90Kg | 230Kg |
| Beam width | 10-100mm | 10-100mm | 10-100mm | 10-100mm |
| Optional | Manual | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ |
Application scope:
The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;
Die Cleaning, welding surface pretreatment, metal surface roughness, natural rock cleaning, metal and glass surface coating removal, the whole surface off paint;
FAQ
1 Q: What is the warranty of 1000W laser rust removal machine?
A: The warranty is 24 months. Offer wholelife aftersales service.
2 Q: What is your payment terms?
A: Any payment terms is acceptable.
3 Q: What is the service of your company?
A: Engineers can offer oversea services and online service.
4 Q: How is the operations?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.The operation is easy to learn.
5 Q: What is the brand of laser?
A: IPG laser.
